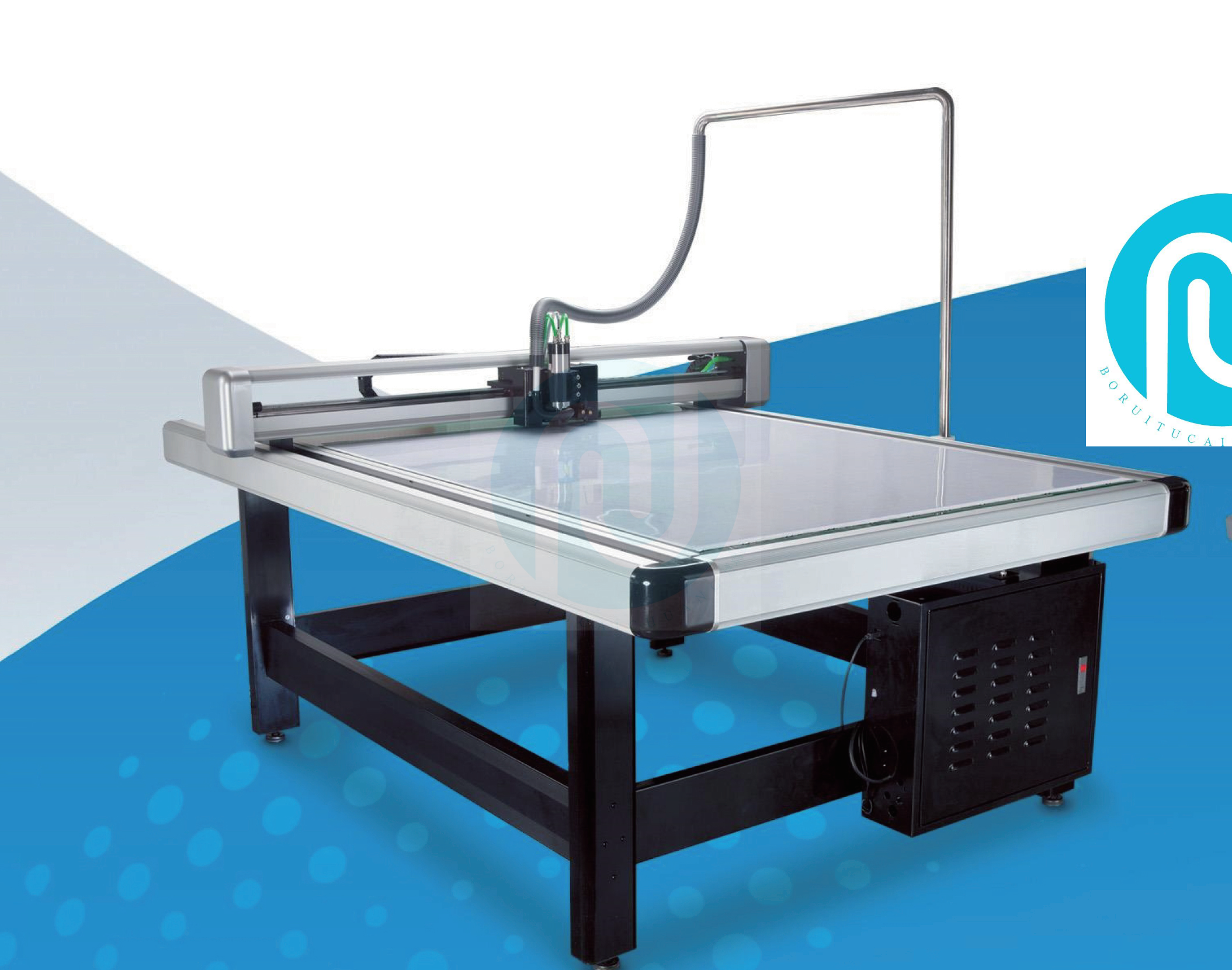

Boruitu Vertical Acceleration Template Cutter Plotter Machine With Single Trail Double Trail

Model

DH1512-5

DH1509-5

DH1512-5

DH1509-5

Main Function

Drill, Punch, Cut, Print

Processing Object

CNC Cutting Plotting For Non-Metallic Board And Paper

Collaborative Agency

axis(XYZ+Computer Adjustment)(Exclusive Patent)

Curve Speed

Keep With Linar Speed

Industry Application

1. lroning Drill Positioning And Punching

2. Making Clothing Pvc Template

3. Clothing Pattern Cutting

4  Leather Pattern Punching7.Making Paper Grids For Leather Goods Cutting Molds

5. Needle Draft Punching Output6. Makina Clothina Pattem Machine Fixture8. Drawing Output For Clothing Layout

Patent

1. Patent Of Sub-Cavity Negative Pressure Matrix Platform (201 120118608.6), Which Makes The Adsorption MoreStable. Even With 1500W Negative Pressure Air Pump Can Produce a Negative Pressure Effect Equivalent ToThat Of An Old Structure Product With a Power Of More Than 8000W.

2. Patented Structure Of Suspended Knife Holder (2013200274638), Which Can Accurately Cut Material Of Diferent Thicknesses Leave No Damage On The Table, Timely Remove The Waste And Keep The Operation Area Clean

3. Patent For The Whole Machine Structure (2013200274642), integrate Function Of Driling-Punching-Cuting.Painting.Processing Vary Material With CNC Machining Operations.

Structure

1. Waste Collecting Device: During The Processing Of Material Will Come Out Many Scrap, The Device WilCollect Them Up,To Keep The Operation Area Clean.

2. The Whole Machine Made By High-Precision Aluminum, With Precise CNc Gantry Master Machine lsFormed At One Time To Achieve The Highest Precision In The Industry

3. lmported Original Linear Guide Rails, lmported CNC Motors, And Imported Utra-High-Speed SpindlesEnsure Accurate Position Control.

4. Taiwan-Mlade Linear High-Speed Lifting Motor. Let The Knife Draw And Feed More Accurately And Quickly.

Operating Area

150cmX120cm

150cmX90cm

150cmX120cm

150cmX90cm

Spindle

220W (DC Servo)

2200W(AC Frequency Conversion)

Ploting Speed&.Cuting Speed

300mm/s

1200mm/s

Chopping Speed

50mm/s

800mm/s

Beam Structure

Single Trail

Double Trail

Mainly Control System

4.0

5.0

Voltage

220V

Chopping Thickness

6mm

Paper Cutting

60-1000g

Communication Interface

USB2.0

Optional Accessories

Negative pressure air pump 1500W.Industrial vacuum cleaner 1200W

1.Different File jigsaw Output.

2.Synchronous Dynamic Display Mechanical Coordinates, Quickly Locate AndAccurate Use Remaining consumables.

3.Background Queue Output, Carry Out Mass Work In Orderly Manner.

4.Offline Output, Quick Release Computer Resource Occupation, shielding Ext.

ernalInterference.

5.Graphic Element Attribute Definition Output, Automatic Calculation Of Spin.dle Tool Radius Offset, More Intuitive And convenient Graphic Editing.
