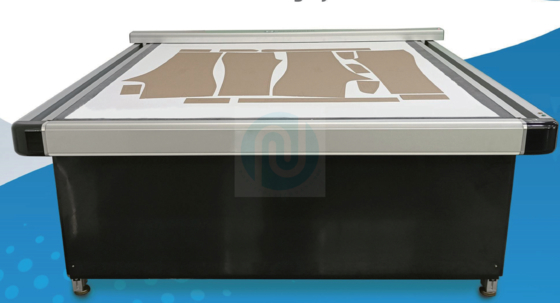

Boruitu AlS Wide Scan Recording System High Precision 5 Seconds Scanning Speed

                                                       Boruitu Als Wide scan Recording System

Model

AIS1615H

AIS1215H

Scan Range

1600mm(Width )X1500mm(Length)

1200mm( Width )X1500mm( Length)

Scanning Speed

5 Seconds/Version

Working Height

5mm

Monitor Power

220V,50W

Fan Power

220V,1500W

/

Power Supply

90/260V,47/66HZ

Communication Interface

Ethernet

Application area

Furniture Record

Automotive Interior,Automotive Cover,Explosion-Proof Film Collection Sample Record

Garment Pattern Digital Record

Bags And Leather Goods Collection Sample Record

Large Draft Record

Shoes And Hats Collection Sample Record

Plane Profile Collection For Special Industries

Piece Structure Measurement Review

1. High - Precision CNC Gantry Master Machine One - Time Finish Milling Forming

2. Negative Pressure Adsorption And Glass Flattening Make The Scanned Object Fully Stretched, The Shadow Is 0

3. Stable Data Transmission By Network Cable, Long Transmission Distance, Matrix Multi - Terminal Operation

4. Automatically Generate Process Information Such As Cutting Edges And Marks

5. Automatic Stepless Smoothing Function, Making the Lines Smooth And Precise Without Frustration And Abruptness

6. Powerful Incomplete Correction Ability, No Matter How Dilapidated the Model Is, It Can Be Repaired Instantly

7. Output Image Format (JPG), Vector Format (DXF), Trimmed Format (PLT)
