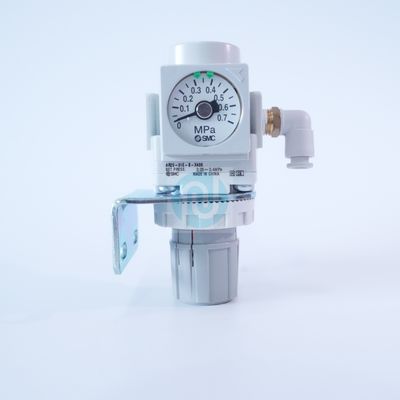

90155001 Regulator Assembly, Presser Foot Is A Part Of Z7 Cutter

Description:

9015500 Regulator Assembly, Presser Foot, Apply To:Gerber Z7/xlc7000/g7,cutting,ggt,gerber Parts.

1.Through a dial or electronic control system, it precisely controls the cutting depth of the cutting tool (with an accuracy of up to 0.1mm), ensuring that the fabric is cut through while preventing scratches on the cutting machine table or backing plate.

2.The presser foot achieves height adjustment through a pneumatic or mechanical structure (with a lifting range of 0-50mm), supporting the cutting of single-layer to multi-layer fabrics (e.g., 10-20 layers of thin cloth). When cutting multiple layers, the presser foot can be raised to a height suitable for the total thickness of the fabrics. After being pressed down, it compacts the multiple layers of fabrics as a whole to prevent interlayer sliding (for example, ensuring consistent dimensions of each layer when cutting bulk garment pieces).

Detailed Product Description:

Specification:

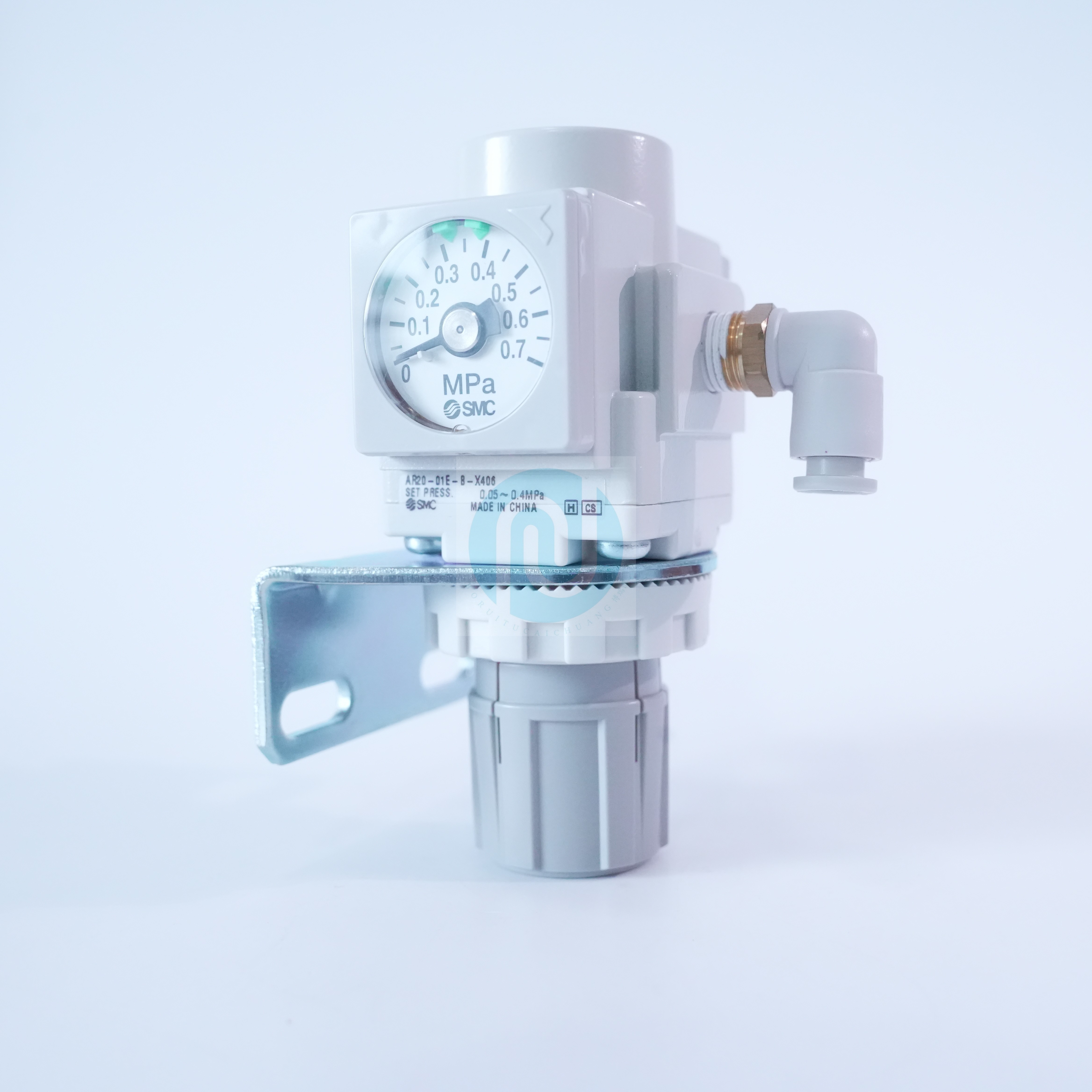

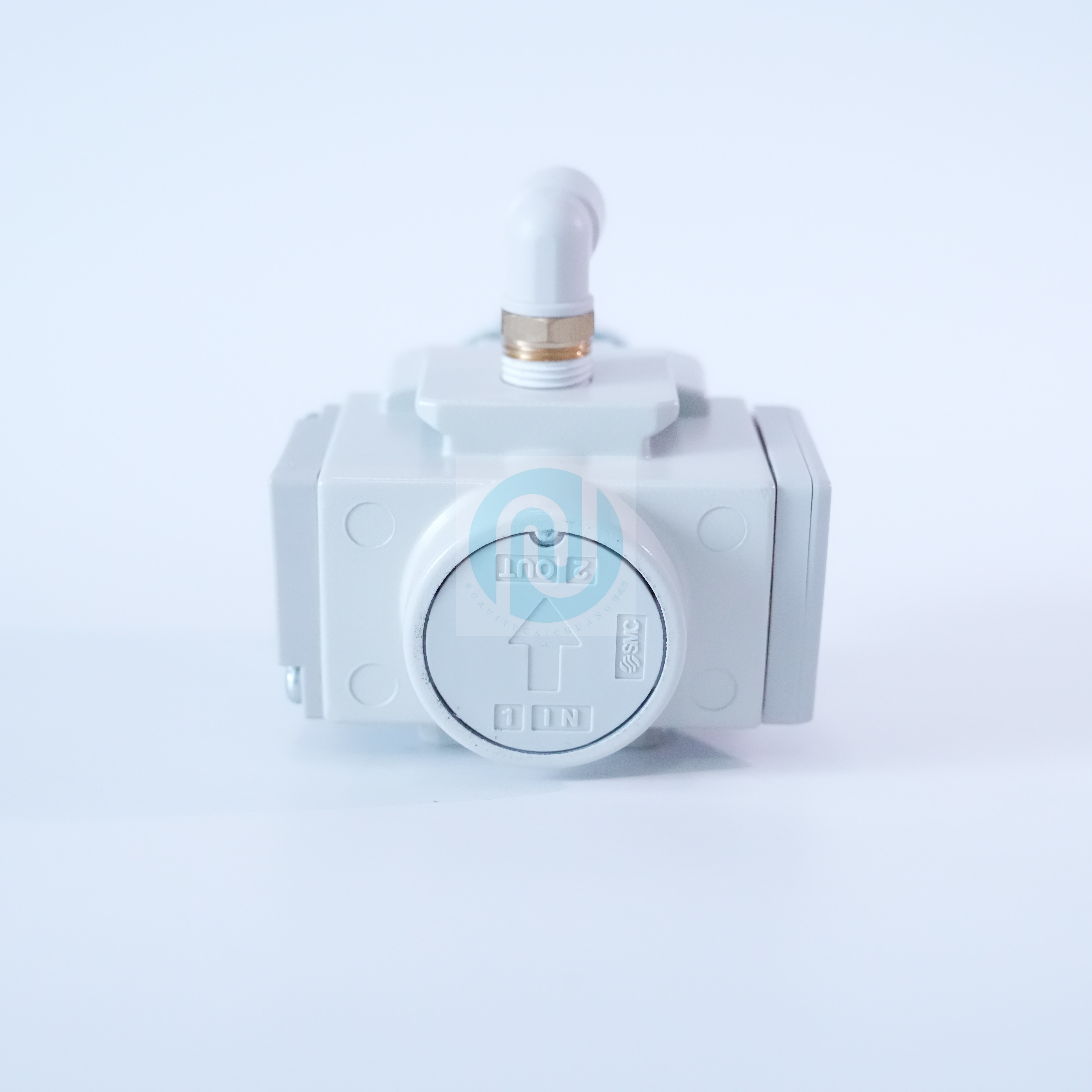

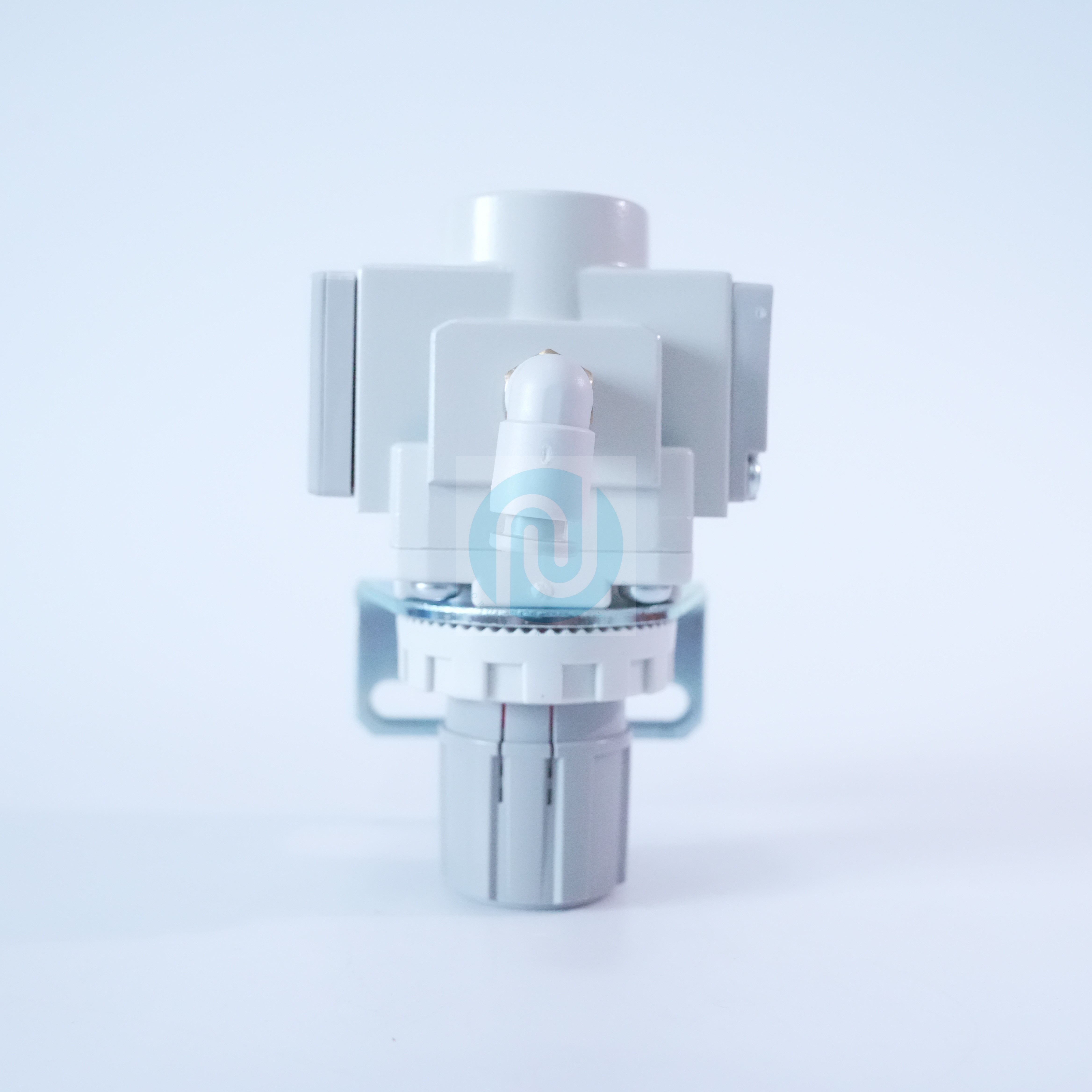

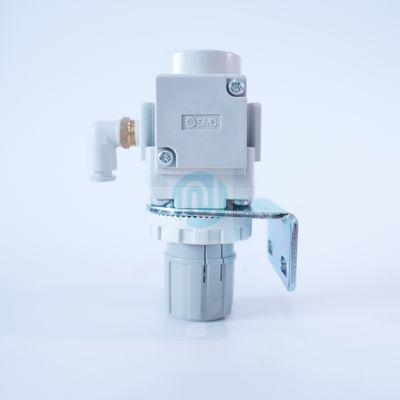

More picture for reference:
